VOMS-400 S/B 4K 3D Operating Microscope (Spine / Brain)
4K 3D visualisation for neurosurgery and spine
VOMS-400 (Spine/Brain) applies Sometech’s 4K RealMicro platform to neurosurgical and spinal procedures, combining Ultra-HD 3D imaging, motorised XYZ control and a programmable foot pedal. The configuration was presented at the Global Spine Congress 2022. A head-up posture on the 4K 3D monitor is maintained throughout surgery, designed to reduce the neck and back discomfort, eye strain and headache associated with eyepiece microscopy. The whole operating-room team can observe the same real-time 3D image for intra-operative cooperation and post-operative teaching. Patented lens technology minimises chromatic aberration, while image processing maintains fine focus over a wide field. A motorised turret, C-curve arm, image-shake reduction and one-touch caster lock support stable positioning in the operating theatre.
Key Features
- True head-up posture for full-procedure work on a 4K 3D monitor
- Patented lens technology minimises chromatic aberration and image distortion

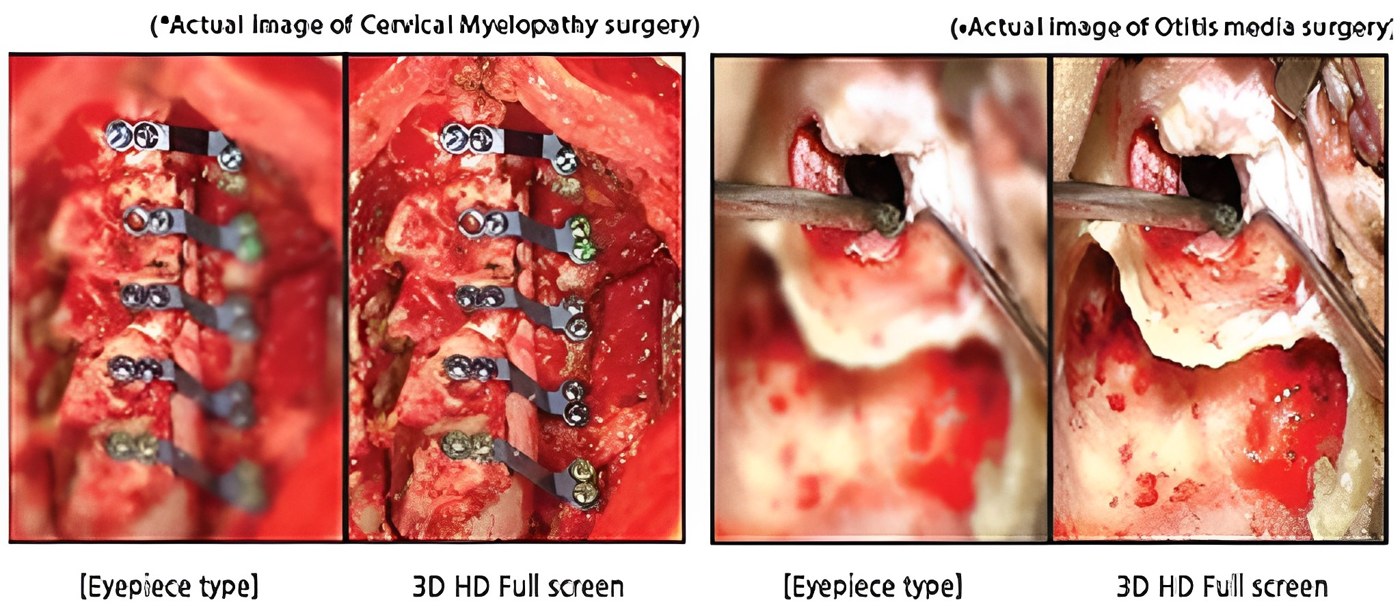

- Fine focusing and a wide field of view through patented image processing

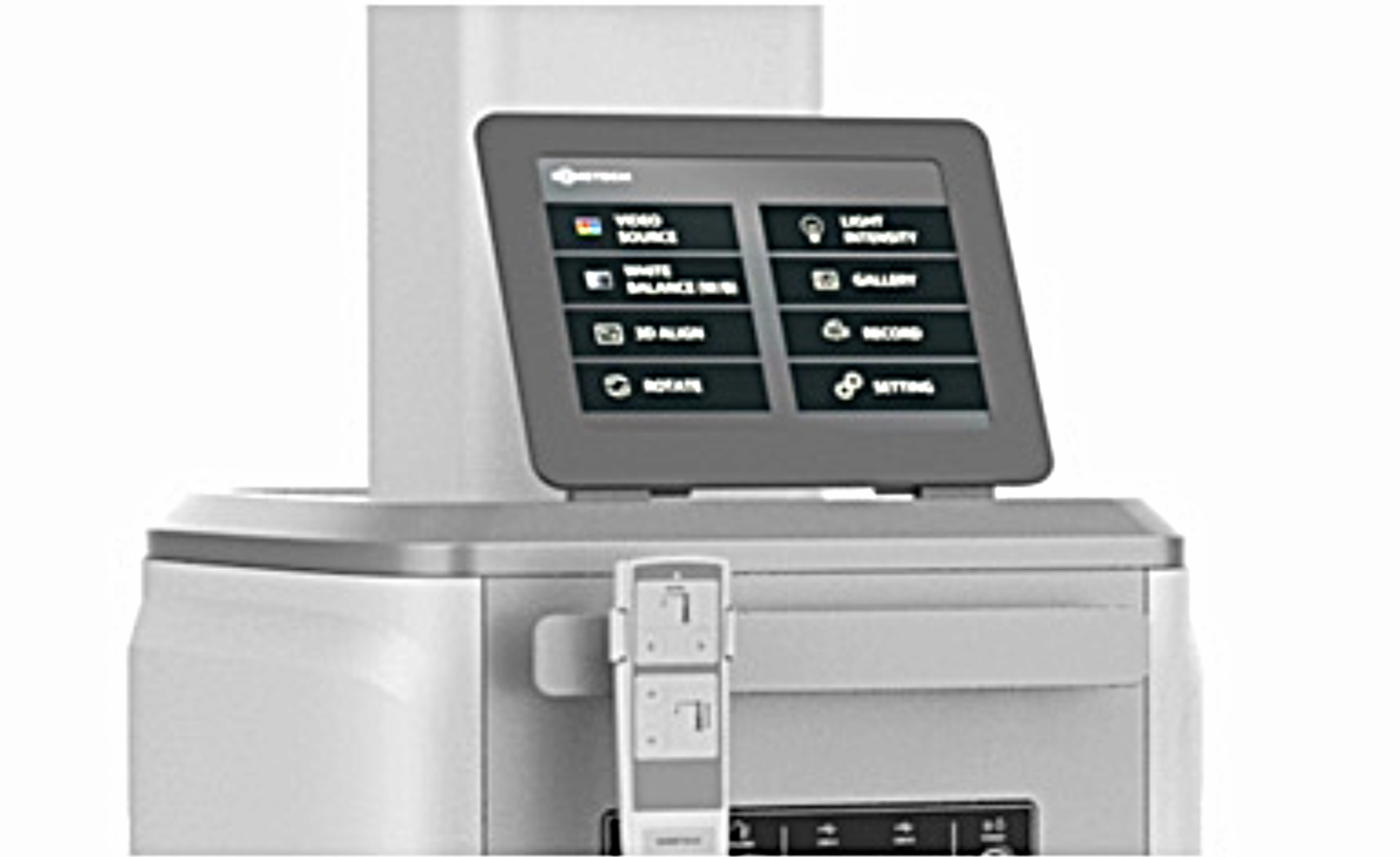

- 10.4-inch wide TFT touch LCD with video colour control, light intensity adjustment, 3D alignment and rotation

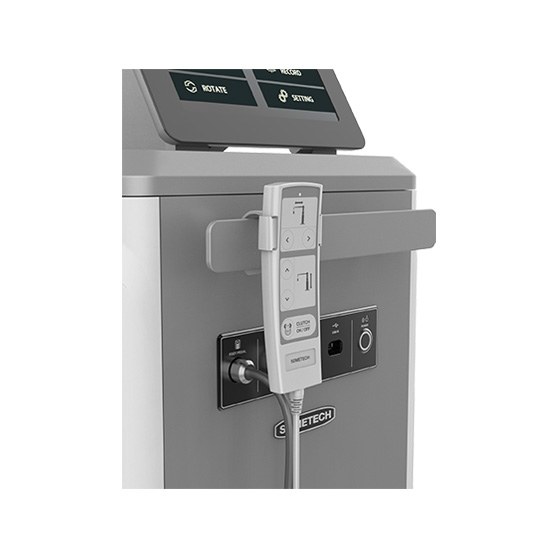

- Programmable foot pedal for zooming, recording and alignment; handheld keypad control

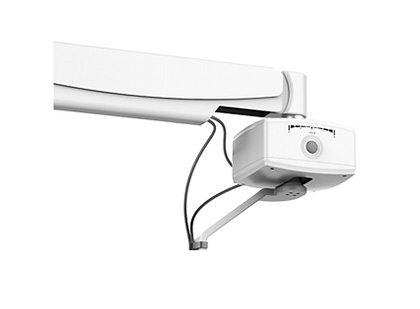

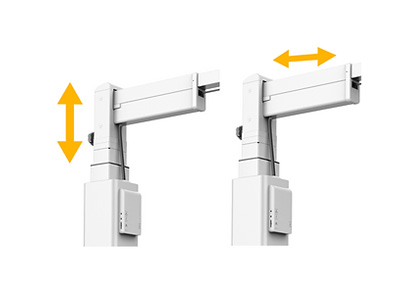

- Motorised vertical, horizontal and tilting extension arm with X/Y movement and image-shake reduction

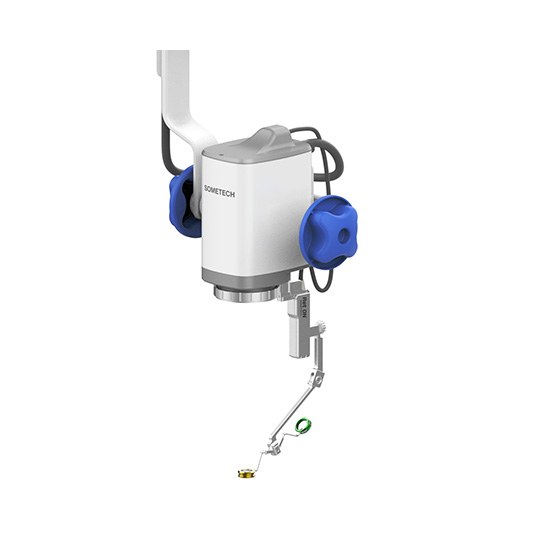

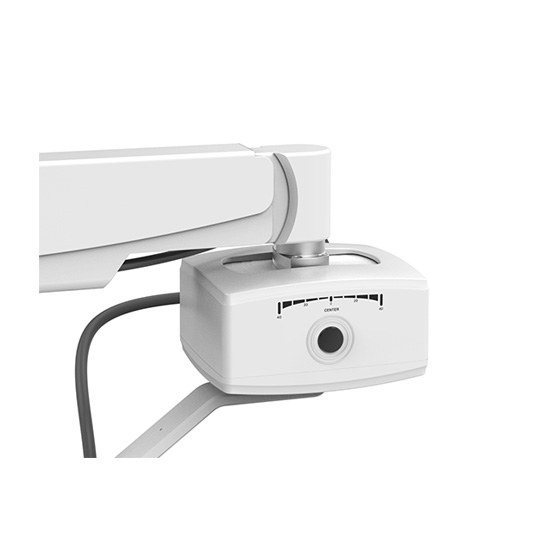

- 20/40 mm multi-lens microscope head with foot-pedal motorised movement and integrated wide-angle viewer

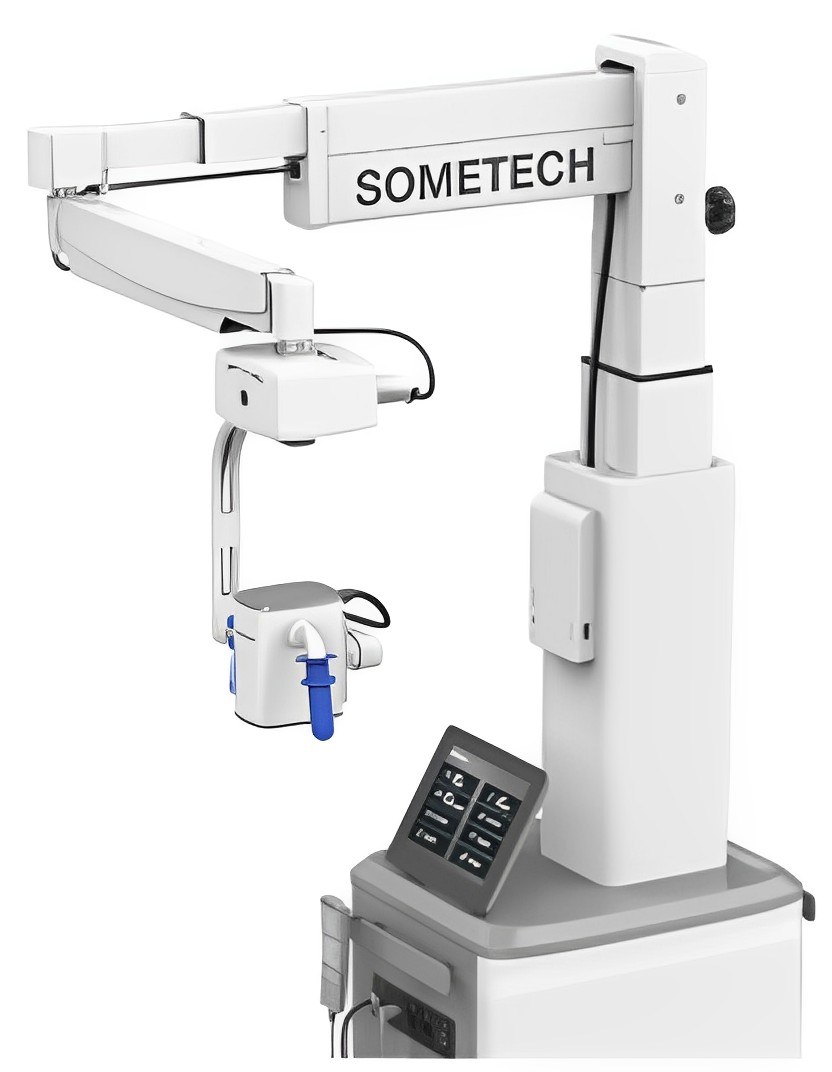

- Motorised turret, C-curve arm and one-touch caster lock for positioning and stability
- Shared real-time 3D imaging for surgical teamwork and education
Clinical Applications
Contact our team for full technical specifications, clinical documentation, pricing, and availability for your practice.

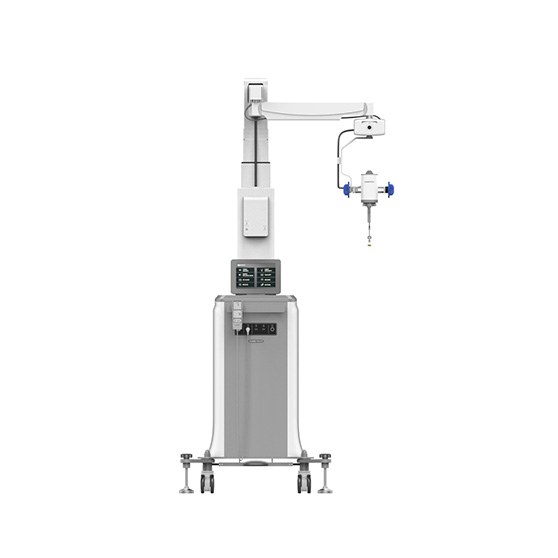

VOMS-400 System & Components
Imaging, Controls & Positioning
Product Videos
Technical Specifications
- Model
- VOMS-400 (Spine/Brain)
- User interface
- 10.4-inch TFT touch LCD, handheld keypad, programmable foot pedal
- XYZ control
- Motorised
- Video output
- Ultra High Definition 3840 × 2160, 60p
- 3D format
- Side by side
- Optical zoom
- Two-type turret lens — D.L 20 mm (40×), D.L 40 mm (20×)
- Digital zoom
- 1.0×–2.0×
- Working distance
- 200 mm
- Recording format
- MPEG-4 / H.264 (AVI)
Source Listing Details
- Brand / origin
- Sometech / South Korea
- Condition
- Brand new
- Listed certifications
- CE, KFDA, ISO 13485, GMP (Mediilife listing)
- Listed warranty
- 12 months manufacturer warranty
- Listed lead time
- 2–4 weeks from order confirmation
- Listed price
- Price on request
- Listed supply terms
- Worldwide shipping from Korea; warranty and training included; registration documents provided. Shipping, customs documents and training quoted per destination.
Product information and all ten photos are sourced from the linked Mediilife listing. The product video is published by Sometech on its official YouTube channel (SOMETECH INC.) and shows the VOMS-400 4K 3D video surgical microscope; it is not hosted on the Mediilife listing. Certifications, warranty, lead time and shipping terms below are reported by Mediilife, not independently verified or guaranteed by MEDIKOR USA. Confirm U.S. regulatory status, configuration, pricing, warranty and delivery with our team before purchase.
